Giant Pump
Giant Pump Plunger Pump, 3.4 GPM, 2500 PSI, Left Shaft, Electric Motor, Short Backend Part Number P218LE1CXU
Giant Pump Plunger Pump, 3.4 GPM, 2500 PSI, Left Shaft, Electric Motor, Short Backend Part Number P218LE1CXU
Regular price
$474.84
Regular price
$953.68
Sale price
$474.84
Unit price
/
per
2500 PSI Left Mounted Plunger Pump

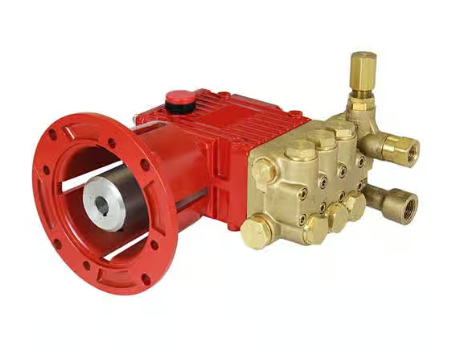

The Giant Pump P218LE1CXU high-pressure pump has a left-side mounted shaft and 18 mm ceramic plungers. This high-quality positive displacement plunger pump has a maximum flow rate of 3.4 GPM, a maximum pressure of 2500 PSI, and a 1750 RPM crankshaft speed. Features a flange for connection to NEMA 56C electric motor for direct drive. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.
Specifications:
- Flow: 3.4 GPM
- Pressure: (Continuous) 2000 PSI
- Pressure: (Intermittent) 2500 PSI
- Crankshaft Speed: 1750 RPM
- Maximum Inlet Pressure: 145 PSI
- Maximum Temperature: 160 °F
- Plunger Diameter: 0.71" (18 mm)
- Stroke: 0.39" (10.0 mm)
- Crankshaft Diameter: 0.98" (24 mm)
- Crankshaft Rotation: Top of pulley towards manifold
- Key Width: 0.31" (8 mm)
- Crankshaft Mounting: Left
- Inlet Ports: (2) 1/2" BSP
- Discharge Ports: (2) 3/8" BSP
- Crankcase Oil Capacity: 7.5 fluid ounces
- Extended Crankcase Oil Capacity: 9.0 fluid ounces
- Weight: 11.7 lbs.
- Volumetric Efficiency @ 1750 RPM: 0.94"
Key Component Material:
- Manifold: Special brass
- Plungers: Solid ceramic oxide
- Valves: High grade stainless steel
- Seals: Nitrile with fabric reinforcing
- Gear End: Aluminum
