Giant Pump Plunger Pump, 4.7 GPM, 3000 PSI, 1750 RPM, Left Shaft, TC Face Electric Motor Flange Part Number P322LE2

Left Mounted Plunger Pump

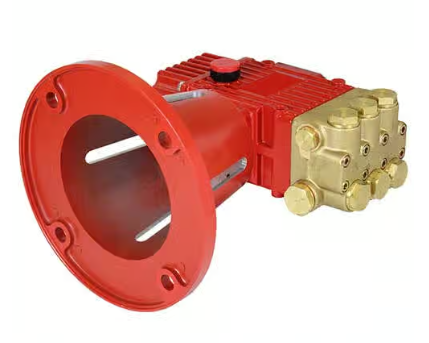

This Giant P322LE2 plunger pump has a left-side mounted shaft and a TC Face electric motor flange featuring 7.25" bolts. This high-quality positive displacement plunger pump has a maximum flow rate of 4.7 GPM at 1750 RPM, or 4.0 GPM at 1450 RPM. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.

Specifications:

@1450 RPM

• Flow: 4.0 GPM
• Pressure: 3500 PSI

@1750 RPM

• Flow: 4.7 GPM
• Pressure: 3000 PSI

Common Specs:

• Maximum Inlet Pressure: 145 PSI
• Maximum Temperature: 160 F
• Plunger Diameter: 0.71" (18 mm)
• Stroke: 0.56" (14.1 mm)
• Crankshaft Diameter: 0.98" (24 mm)
• Crankshaft Rotation: Top of pulley towards manifold
• Crankshaft Mounting: Left
• Inlet Ports: (2) 1/2" BSP
• Discharge Ports: (2) 3/8" BSP
• Crankcase Oil Capacity: 14.2 fluid ounces
• Extended Crankcase Oil Capacity: 17.0 fluid ounces
• Weight: 16 lbs.

Key Component Material:

• Manifold: Special brass
• Plungers: Solid ceramic oxide
• Valves: High grade stainless steel
• Seals: Nitrile with fabric reinforcing
• Gear End: Aluminum
