Giant Pump Positive Displacement Right Shaft Plunger Pump, 3.4 GPM, 2500 PSI, 1750 Part Number P218R

2500 PSI Right Mounted Plunger Pump

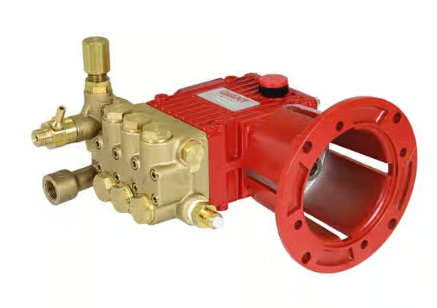

This Giant P218R high-pressure pump has a right-side mounted shaft and 18 mm ceramic plungers. This high-quality positive displacement plunger pump has a maximum flow rate of 3.4 GPM, a maximum pressure of 2500 PSI, and a 1750 RPM crankshaft speed. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops. Made in the U.S.A.

Specifications:

• Flow: 3.4 GPM
• Pressure: (Continuous) 2000 PSI
• Pressure: (Intermittent) 2500 PSI
• Crankshaft Speed: 1750 RPM
• Maximum Inlet Pressure: 145 PSI
• Maximum Temperature: 160 °F
• Plunger Diameter: 0.71" (18 mm)
• Stroke: 0.39" (10.0 mm)
• Crankshaft Diameter: 0.98" (24 mm)
• Crankshaft Rotation: Top of pulley towards manifold
• Key Width: 0.31" (8 mm)
• Crankshaft Mounting: Right
• Inlet Ports: (2) 1/2" BSP
• Discharge Ports: (2) 3/8" BSP
• Crankcase Oil Capacity: 7.5 fluid ounces
• Extended Crankcase Oil Capacity: 9.0 fluid ounces
• Weight: 11.7 lbs.
• Volumetric Efficiency @ 1750 RPM: 0.94"

Key Component Material:

• Manifold: Special brass

• Plungers: Solid ceramic oxide

• Valves: High grade stainless steel

• Seals     Nitrile with fabric reinforcing

• Gear End: Aluminum
