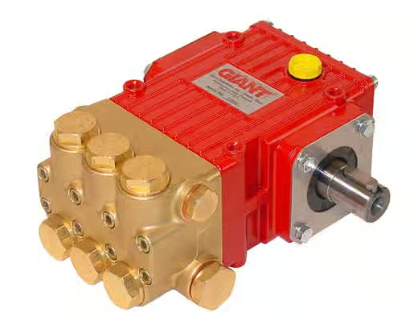

Giant Pump Positive Displacement Right Shaft Plunger Pump - 3.4 GPM, 2500 PSI, 3450 RPM Part Number P217R

3.3 GPM Car Wash Pump

This Giant P217R high-pressure pump has a right-side mounted shaft, an aluminum crankcase, solid ceramic plungers, and nitrile seals. Performance details for this positive displacement plunger pump include a maximum flow rate of 3.4 GPM, a maximum pressure of 2500 PSI, and a 3450 RPM crankshaft speed. Giant positive displacement pumps are excellent options for high-pressure water systems at car washes, auto dealers, and auto detailing shops. Made in the U.S.A.

Specifications:

• Flow Rate: 3.4 GPM (12.5 L/min)
• Maximum Continuous Pressure: 2000 PSI (145 bar)
• Maximum Intermittent: Pressure: 2500 PSI (170 bar)
• Maximum Inlet Pressure: 145 PSI (10 bar)
• Maximum Temperature: 160° Fahrenheit (71° C)
• Plunger Diameter: 0.71" (18mm)
• Stroke 0.22" (5.5mm)
• Crankshaft Diameter: 0.98" (24mm)
• Key Width: 0.31" (8mm)
• Inlet Ports: 1/2" BSP (x2)
• Discharge Ports: 3/8" BSP (x2)
• Crankcase Oil Capacity: 7.5 fl. oz. (0.22 L)
• Extended Crankcase Oil Capacity: 9.0 fl. oz. (0.27 L)
• Weight: 11.7 lbs. (5.3kg)
• Volumetric Efficiency @ 3450 RPM: 0.87"

Key Component Material:

• Manifold: Special brass
• Plungers: Solid ceramic oxide
• Valves: High grade stainless steel
• Seals: Nitrile with fabric reinforcing
• Gear End: Aluminum
