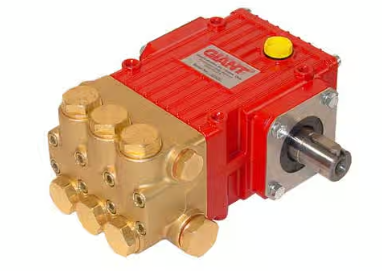

Giant Pump Pump - Right Shaft, 2000/2500 PSI Part Number P209RE1D

Right Shaft Plunger Pump

The Giant Pumps P209RE1D is an American-made positive displacement pump designed for direct or belt driven applications. It has a right-mounted shaft, a 7/8" coupler, and a 56C electric flange. This triplex plunger high pressure pump has reciprocating plungers and an aluminum crankcase with a sight glass and a vented dipstick. Choose quality Giant products for your car washing systems, pressure washing business, and other high pressure applications.

1750 RPM Specifications:

• Max Flow: 1.5 GPM; 5.7 L/min
• Continuous Pressure: 2000 PSI; 140 bar
• Intermittent Pressure: 2500 PSI; 175 bar

3450 RPM Specifications:

• Max Flow: 2.7 GPM; 10.2 L/min
• Nominal Pressure: 2000 PSI; 140 bar
• Intermittent Pressure:
• 2000 PSI; 140 bar

Common Specifications:

• Max Temperature: 160 °F; 70°C
• Plunger Diameter: 0.47"; 12mm
• Stroke: 0.39"; 10 mm
• Maximum Inlet Pressure: 145 PSI; 10 bar
• Crankshaft Diameter: 0.98"; 24 mm
• Crankcase Oil Capacity: 7.5 fluid ounces; 0.22 L
• Crankcase Oil Capacity (extended): 9.0 fluid ounces; 0.27 L
• Weight: 11.7 lbs; 5.3 kg
• Inlet Ports: (2) 1/2" BSP
• Discharge Ports: (2) 3/8" BSP
• Shaft Rotation: Top of Pulley Towards Manifold
• Shaft Mounting: RightKey

Component Materials:

• Special brass manifold
• Solid ceramic oxide plungers
• High grade stainless steel valves
• Nitrile seals with fabric reinforcement
• Aluminum die-cast gear end
