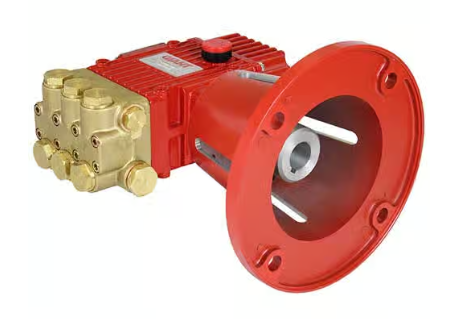

Giant Pump, Right Shaft, 3.7GPM, 4000PSI, 182TC 1 1/8" Extend Part Number P317

Right Shaft Pump from Giant Industries for High Pressure Industrial Applications

Features:
Aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves and forged brass manifold.

• Volume ............................................................ 3.5 GPM ............................ (13.5 LPM)
• P317
• Discharge Pressure (Continuous) ................ 3000 PSI .................. .... (200 bar)
• Discharge Pressure (Intermittent) ................ 3300 PSI .................. .... (225 bar)
• P323
• Discharge Pressure (Continuous) ................ 3300 PSI .................. ..... (225 bar)
• Discharge Pressure (Intermittent) ................ 3630 PSI .................. ..... (250 bar)
• Inlet Pressure .................................................................................... ..... Up to 90 PSI
• Stroke ............................................................. 0.42” ........................ ..... 10.6 mm
• Crankshaft Speed ............................................................................. ..... Up to 1750 RPM
• Plunger Diameter .......................................... 0.71” ........................ ...... 18mm
• Temperature of Pumped Fluids ................... Up to 160 oF............ ...... (71 oC)
• Inlet Ports .......................................................................................... ...... (2) 1/2" BSP
• Discharge Ports ................................................................................ ...... (2) 3/8" BSP
• Shaft Rotation ................................................ ..........Top of pulley towards manifold
• Crankshaft Diameter ........................................................................ ....... 24mm
• Key Width ........................................................................................ ....... 8mm
• Shaft Mounting (See note below) ................ ....... .......................... ....... Either side
• Weight ............................................................ 16 lbs. .............................. (7.26 kg)
• Crankcase Oil Capacity ................................ 14.2 fl.oz. ........................ (0.42 liters)
• Extended Crankcase Oil Capacity ............... 17 fl. oz. .......................... (0.5 liters)
• NPSHR (@ 1450 RPM) ................................ 26.2 Ft of Water ...... ........8.0 mW
