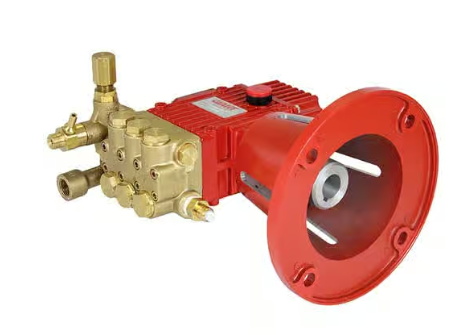

Giant Pump Series Right Shaft TC Face Electric Motor - 1-1/8in. With Unloader Part Number 220E

220E Series Pump

This is an American-made triplex plunger positive displacement pump with reciprocating plungers. Aluminum crankcase with sight glass and vented dipstick, forged, through-hardened, ground and polished crankshaft, bronze connecting rods, hardened stainless steel plunger bases, solid ceramic plungers, fabric reinforced nitrile seals, and stainless steel valves and forged brass manifold.

Includes these Options: bell housing (to connect to gasoline, diesel, electric or hydraulic drive), and unloader.

Giant P220RE2FUSpecifications:

• Flow: 4.7 GPM
• Pressure (Continuous): 2000 PSI
• Pressure (Intermittent): 2500 PSI
• Maximum Crankshaft Speed: 1750 RPM
• Maximum Inlet Pressure: 145 PSI
• Plunger Diameter: 0.71"
• Stroke: 0.56"
• Max. Temperature of Pumped Fluids: 160 degrees F
• Inlet Ports: (2) 1/2" BSP
• Discharge Ports: (2) 3/8" BSP
• Crankshaft Diameter: 24 mm
• Shaft Mounting: Right Side Facing Manifold
• Weight: 11.7 lbs
• Crankcase Oil Capacity: 7.5 fl.oz.
