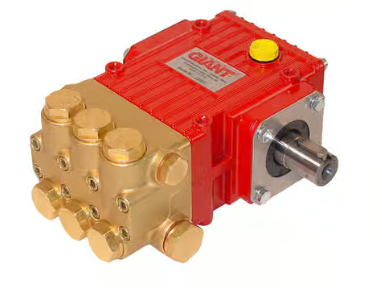

Giant Pump Triplex Plunger Pump, 0.5 GPM, 2000 PSI, Right Shaft, Regulator, Thermal Relief Valve Part Number P205RE2FRT

Low-Flow Right Mounted Plunger Pump

The Giant P205RE2FRT high-pressure pump has a right-side mounted shaft and 12 mm ceramic plungers. This high-quality positive displacement plunger pump has a maximum flow rate of 0.5 GPM and a maximum pressure of 2000 PSI. Features TC Face electric motor flange with 7 1/4" diameter bolts for direct drive, and a 1 1/8" aluminum coupler. Includes regulator and thermal relief valve for easy ingetration! Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.

Specifications:

• Max GPM: 0.5 GPM
• Discharge pressure: 2000
• Maximum temperature: 160° F

• Plunger diameter: 12 mm
• Stroke: 3.4 mm
• Crankshaft diameter: 24 mm

• Inlet ports: (2) 1/2" BSP
• Discharge ports: (2) 3/8" BSP
• Crankcase oil capacity: 7.5 fl. oz.


Key Component Material:

• Manifold: Special brass

• Plungers: Solid ceramic oxide

• Valves: High grade stainless steel

• Seals: Nitrile with fabric reinforcing

• Gear End: Aluminum
