Giant Pump Triplex Plunger Pump, 0.9 GPM, 3450 PSI, Left Shaft, NEMA 56C Flange, Aluminum Coupler Part Number P205LE1B

Low-Flow Left Mounted Plunger Pump

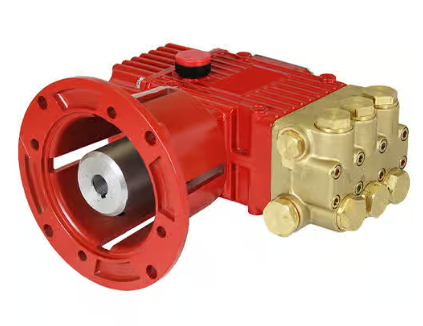

The Giant P205LE1B high-pressure pump has a left-side mounted shaft and 12 mm ceramic plungers. This high-quality positive displacement plunger pump has a maximum flow rate of 0.9 GPM, a maximum pressure of 2500 PSI. Features NEMA 56C flange for electric motor direct drive, and 5/8" aluminum coupler. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.

Specifications:

@ 1750 RPM

• Max GPM: 0.5 GPM
• Nominal/Intermittent pressure: 2000/2500 PSI

@ 3450 RPM

• Max GPM: 0.9 GPM
• Nominal/Intermittent pressure: 2000/2000 PSI

Common Specs

• Maximum temperature: 160 F

• Plunger diameter: 12 mm
• Stroke: 3.4 mm
• Crankshaft diameter: 24 mm

• Inlet ports: (2) 1/2" BSP
• Discharge ports: (2) 3/8" BSP
• Crankcase oil capacity: 7.5 fl. oz.
• Volumetric Efficiency @ 1750 RPM: 0.94
• Volumetric Efficiency @ 3450 RPM: 0.87
• Mechanical Efficiency @ 3450 RPM: 0.86
• Power required: 4.7/5.9 BHP

Key Component Material:

• Manifold: Special brass

• Plungers: Solid ceramic oxide

• Valves: High grade stainless steel

• Seals: Nitrile with fabric reinforcing

• Gear End: Aluminum
