Giant Pump

Giant Pumps Combination Package - P314R Pump And 23910 Electric Clutch Part Number 17083R

Giant Pumps Combination Package - P314R Pump And 23910 Electric Clutch Part Number 17083R

Regular price $829.71
Regular price $1,256.16 Sale price $829.71
Sale Sold out

Pressure Washing Pump and Clutch Combo

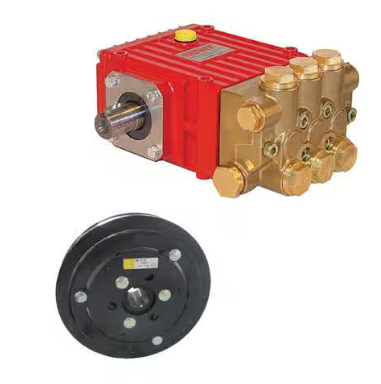

The Giant Pumps 17083R package includes both the P314R pump and the 23190 electric clutch; save money by buying both of them at the same time!

The Giant Pumps P314R is an American-made positive displacement pump for direct or belt driven applications. This triplex plunger high pressure pump has reciprocating plungers and an aluminum crankcase with sight glass and a vented dipstick. This model is mounted on the right. Choose quality Giant products for your car wash, pressure washing, and other high pressure applications.

The 23190 electric clutch allows the pump user to keep the electric, gas, or diesel engine running while controlling the high pressure pump. Via an electric signal to the clutch assembly, the clutch turns on and off.

Pump Specifications:

  • 3450 RPM
  • Max Flow: 3.8 GPM; 14.4 L/min
  • Nominal Pressure: 3500 PSI; 240 bar
  • Power Required (Nominal): 9.2 hp; 6.9 kW
  • Intermittent Pressure: 4000 PSI; 275 bar
  • Power Required (Intermittent): 10.5 hp; 7.8 kW
  • Max Temperature: 160 °F; 70°C
  • Plunger Diameter: 0.47"; 12mm
  • Stroke: 0.56"; 14.1 mm
  • Inlet Pressure     145 PSI; 10 bar
  • Crankshaft Diameter: 0.94"; 24 mm
  • Oil Capacity (short): 14.2 fluid ounces; 0.42 L
  • Oil Capacity (extended): 17.0 fluid ounces; 0.5 L
  • Weight: 16 lbs; 7.3 kg
  • Inlet Ports:(2) 1/2" BSP
  • Discharge Ports: (2) 3/8" BSP
  • Shaft Rotation: Top of Pulley Towards Manifold
  • Shaft Mounting: Right

Pump Component Materials:

  • Forged brass manifold
  • Solid ceramic oxide plungers
  • High grade stainless steel valves
  • Nitrile with fabric reinforcing seals
  • Aluminum die-cast gear end
