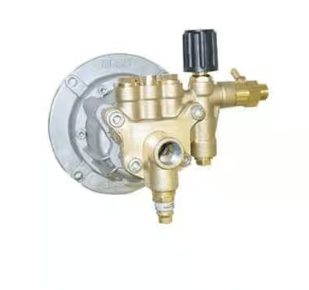

Giant Pumps Direct Drive Only Triplex Plunger Pump - 2500 PSI, 2.5 GPM, 3450 RPM Part Number GXH2525-112H
Giant Pumps Direct Drive Only Triplex Plunger Pump - 2500 PSI, 2.5 GPM, 3450 RPM Part Number GXH2525-112H
Regular price
$156.26
Regular price
$316.52
Sale price
$156.26
Unit price
/
per
Axial Positive Displacement Pump
Giant Pumps' GX Series are made in America and can be mounted vertically or horizontally. This pump has the ability to be powered by a gas engine or an electric motor. Integrated with the pump is a thermal relief valve. Valves are made using Delrin.
We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements, use the following formulas:
Electric HP = (GPM X PSI)/1450
Gas HP = (GPM X PSI)/1100
*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.
-
Specifications:
- Flow: 2.5 GPM
- Maximum Discharge Pressure: 2500 PSI
- Crankshaft Speed: 3450 RPM
- Maximum Inlet Pressure: 90 PSI
- Max. Temperature of Pumped Fluids: 80 °F
- Plunger Diameter: 0.63_
- Stroke: 5.1 mm (7.1° angle)
- Crankshaft Rotation: Either Direction
- Key Width (Horizontal): 3/4_ x 3/16_ Keyway
- Key Width (Vertical): 7/8_ x 3/16_ Keyway
- Inlet Ports: 1/2_ NPT
- Discharge Ports: 3/8_ NPT
- Crankcase Oil Capacity (Horizontal): 4.1 fl. oz.
- Crankcase Oil Capacity (Vertical): 4.7 fl. oz.
- Weight: 9 lbs.
- Key Component: Material
- Manifold: Brass
- Plungers: Stainless Steel
- Valves: Delrin
- Seals: Nitrile with Fabric Reinforcing
- Gear End: Aluminum
Includes the Following Accessories:
- Injector With 2.1mm Orifice
- 1/2" Thermal Relief Valve
- 7/8" Wobble Plate Bore
