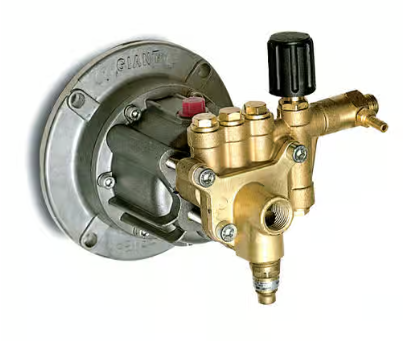

Giant Pumps Direct Drive Only Triplex Plunger Pump -2500 PSI, 2.5 GPM, 3450 RPM Part Number GXV2525-212H

Axial Positive Displacement Pump

Giant Pumps' GX Series are made in America and can be mounted vertically or horizontally. This pump has the ability to be powered by a gas engine or an electric motor. Integrated with the pump is a thermal unloader and thermal relief valve. Valves are made using Delrin.

Specifications:

• Flow: 2.5 GPM

• Maximum Discharge Pressure: 2500 PSI

• Crankshaft Speed: 3450 RPM

• Maximum Inlet Pressure: 90 PSI

• Max. Temperature of Pumped Fluids: 80 °F

• Plunger Diameter: 0.63_

• Stroke: 5.1 mm

• Crankshaft Rotation: Either Direction

• Key Width (Horizontal): 3/4_ x 3/16_ Keyway

• Key Width (Vertical): 7/8_ x 3/16_ Keyway

• Inlet Ports: 1/2_ NPT

• Discharge Ports: 3/8_ NPT

• Crankcase Oil Capacity (Horizontal): 4.1 fl. oz.

• Crankcase Oil Capacity (Vertical): 4.7 fl. oz

• Weight: 9 lbs.

• Manifold: Brass

• Plungers: Stainless Steel

• Valves: Delrin

• Seals: Nitrile With Fabric Reinforcing

• Gear End: Aluminum
