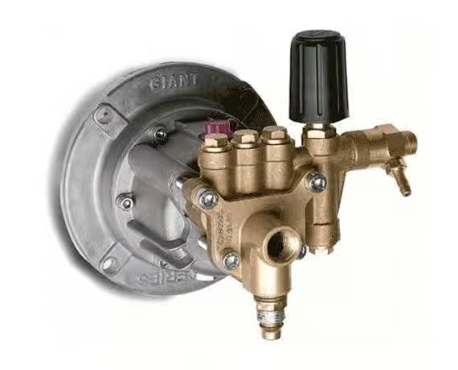

Giant Pumps Direct Drive Only Triplex Plunger Pump -7/8 Inch Steel Shaft, 2500 PSI, 2.5 GPM, 3450 RPM Part Number GXH2525A-112H

Direct Drive Only Triplex Plunger Pump

Giant Pumps' GX Series are made in America and can be mounted vertically or horizontally. This pump is able to use a gas engine or an electric motor for power. Integrated thermal relief valve and siphon injector. Utilizes valves made with Delrin.

Note:

We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements, use the following formulas:

Electric HP = (GPM X PSI)/1450

Gas HP = (GPM X PSI)/1100

*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.

Specifications:

• Flow: 2.5 GPM

• Maximum Discharge Pressure: 2500 PSI

• Crankshaft Speed: 3450 RPM

• Maximum Inlet Pressure: 90 PSI
• Max. Temperature of Pumped Fluids: 80 °F

• Shaft Material: Steel
• Shaft Diameter: 7/8 Inch
• Plunger Diameter: 0.63"

• Stroke: 5.1 mm

• Crankshaft Rotation: Either Direction

• Key Width (Horizontal): 3/4" x 3/16" Keyway

• Key Width (Vertical): 7/8" x 3/16" Keyway

• Inlet Ports: 1/2" NPT

• Discharge Ports: 3/8" NPT

• Crankcase Oil Capacity (Horizontal): 4.1 fl. oz.

• Crankcase Oil Capacity (Vertical): 4.7 fl. oz

• Weight: 9 lbs.

• Manifold: Brass

• Plungers: Stainless Steel

• Valves: Delrin

• Seals: Nitrile with Fabric Reinforcing

• Gear End: Aluminum
