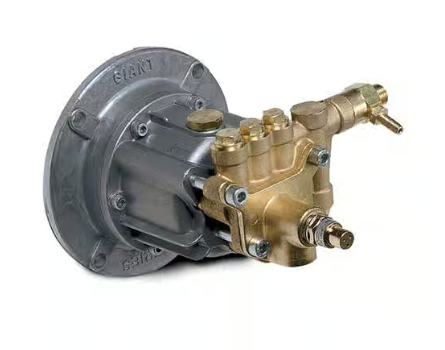

Giant Pumps Horizontal Direct Drive Only Triplex Plunger Pump - 2500 PSI, 2.5 GPM, 3450 RPM Part Number GXRH2525-111

Axial Positive Displacement Pump

Giant Pumps' GX Series are made in America and is mounted horizontally. This pump has the ability to be powered by a gas engine or an electric motor. Integrated with the pump is a thermal relief valve. Valves are made using Delrin.

Note:

 We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements, use the following formulas:

Electric HP = (GPM X PSI)/1450

Gas HP = (GPM X PSI)/1100

*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.

Specifications:

• Flow: 2.5 GPM

• Maximum Discharge Pressure: 2500 PSI

• Crankshaft Speed: 3450 RPM

• Maximum Inlet Pressure: 90 PSI

• Max. Temperature of Pumped Fluids: 80 °F

• Plunger Diameter: 0.63_

• Stroke: 5.1 mm (7.1° angle)

• Crankshaft Rotation: Either Direction

• Key Width (Horizontal): 3/4_ x 3/16_ Keyway

• Key Width (Vertical): 7/8_ x 3/16_ Keyway

• Inlet Ports: 1/2_ NPT

• Discharge Ports: 3/8_ NPT

• Crankcase Oil Capacity (Horizontal): 4.1 fl. oz.

• Crankcase Oil Capacity (Vertical): 4.7 fl. oz.

• Weight: 9 lbs.

• Key Component Material

• Manifold: Brass

• Plungers: Stainless Steel

• Valves: Delrin

• Seals: Nitrile with Fabric Reinforcing

• Gear End: Aluminum

• Includes the Following Accessories:

• Injector With 2.1 mm Orifice

• 1/2" Thermal Relief Valve

• 3/4" Wobble Plate Bore
