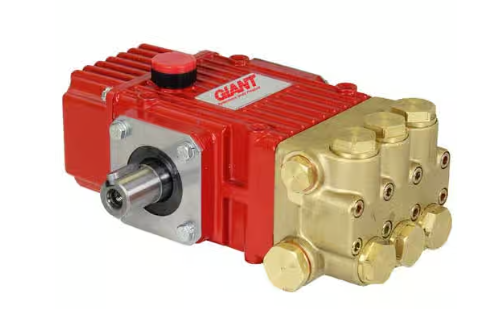

Giant Pumps Left Mount Triplex Plunger Pump- 4.8 GPM, 2500 PSI, 3450 RPM Part Number P319L

Aluminum Crankcase Plunger Pump

The Giant Pumps P319L is an American-made positive displacement pump for direct or belt driven applications. This triplex plunger high pressure pump has reciprocating plungers and an aluminum crankcase with a sight glass and a vented dipstick. This P319L model has its shaft mounted on the left side of the pump.

Choose quality Giant products for your car washing systems, pressure washing business, and other high pressure applications.

Specifications:

• 3450 RPM
• Max Flow: 4.8 GPM; 18.2 L/min
• Nominal Pressure: 2500 PSI; 170 bar
• Power Consumption (Nominal): 8.3 hp; 6.2 kW
• Intermittent Pressure: 2750 PSI; 190 bar
• Power Consumption (Intermittent): 9.1 bhp; 6.8 kW
• Max Temperature: 160 °F; 70°C
• Plunger Diameter: 0.71"; 18mm
• Stroke: 0.31"; 8.0 mm
• Max Inlet Pressure: 145 PSI; 10 bar
• Crankshaft Diameter: 0.94"; 24 mm
• Oil Capacity (short): 14.2 fluid ounces; 0.42 L
• Oil Capacity (extended): 17.0 fluid ounces; 0.5 L
• Weight: 16 lbs; 7.3 kg
• Inlet Ports:(2) 1/2" BSP
• Discharge Ports: (2) 3/8" BSP
• Crankshaft Rotation: Top of Pulley Towards Manifold
• Shaft Mounting: Left
• Made in the U.S.A.

Component Materials:

• Forged brass manifold
• Solid ceramic oxide plungers
• High grade stainless steel valves
• Nitrile with fabric reinforcement seals
• Aluminum die-cast gear end
