Giant Pumps Left Shaft Triplex Plunger Pump - 5.5 GPM, 4350 PSI, 1450 RPM Part Number P455BL
Giant Pumps Left Shaft Triplex Plunger Pump - 5.5 GPM, 4350 PSI, 1450 RPM Part Number P455BL
Regular price
$1,299.50
Regular price
$2,603.00
Sale price
$1,299.50
Unit price
per
Couldn't load pickup availability
5.5 GPM - Plunger Pump

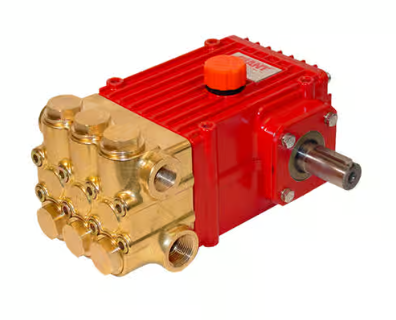

The Giant Pumps P455BL is a triplex plunger pump with its shaft located on the left side. Manifold is constructed with forged brass for strength and durability. Crankcase is made with aluminum and equipped with a 28 mm crankshaft. Valves are made with stainless steel and the seals are made with fabric reinforced Nitrile. The pump handles a maximum pressure of 4350 PSI. It produces a maximum flow rate of 5.5 GPM.Specifications:
- Flow: 5.5 GPM
- Maximum Discharge Pressure: 4350 PSI
- Crankshaft Speed: 1450 RPM
- Power: 16.5 HP
- Crankshaft Speed (High): 5.5 RPM
- Intermittent Flow: 5.5 GPM
- Intermittent Discharge Pressure: 5100 PSI
- Intermittent Crankshaft Speed: 1450 RPM
- Intermittent Power Consumption: 19.3 HP
- Inlet Port Size: (2) 3/4" BSP
- Discharge Port Size: (2) 1/2" BSP
- Max Temperature: 160 °F
- Plunger Diameter: 0.71 in./18 mm
- Stroke: 0.79 in./20 mm
- Maximum Inlet Pressure: 145 PSI
- Crankshaft Diameter: 28 mm
- Crankshaft Rotation: Top of Pulley Towards Manifold
- Key Width: 0.31 in./8 mm
- Crankcase Oil Capacity: 30.4 fl. oz.
- Weight: 38.3 lbs.
- NPSHR: 8.7 mWs
- Manifold Material: Forged Brass
- Crankcase Material: Aluminum
- Plunger Material: Solid Ceramic Oxide
- Valve Material: High Grade Stainless Steel
- Seal Material: Nitrile with Fabric Reinforcing
