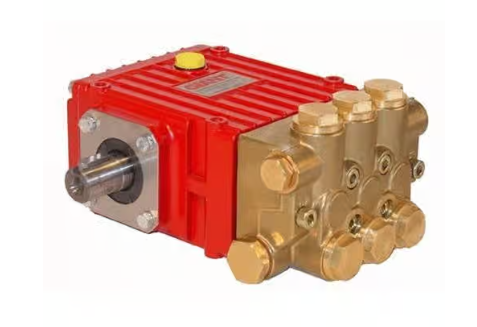

Giant Pumps P314 High Pressure Pump - Left Shaft, 3.5 GPM, 3045/3350 PSI Part Number P317L

Triplex Ceramic 3.5 GPM Plunger Pump -Left Shaft

The Giant Pumps P317 is an American-made positive displacement pump for direct or belt driven applications. This triplex plunger high pressure pump has reciprocating plungers and an aluminum crankcase with sight glass and a vented dipstick. Choose quality Giant products for your car washing systems, pressure washing business, and other high pressure applications.

Specifications:

• 1750 RPM

• Max Flow: 3.5 GPM; 13.2 L/min

• Nominal Pressure: 3045 PSI; 210 bar

• Power Consumption (Nominal): 7.4 bhp; 5.5 kW

• Intermittent Pressure: 3350 PSI; 230 bar

• Power Consumption (Intermittent): 8.1 bhp; 6.0 kW

• Max Temperature: 160 °F; 70°C

• Plunger Diameter: 0.71"; 18mm

• Stroke: 0.42"; 10.6 mm

• Inlet Pressure     145 PSI; 10 bar

• Crankshaft Diameter: 0.94"; 24 mm

• Oil Capacity (short): 14.2 fluid ounces; 0.42 L

• Oil Capacity (extended): 17.0 fluid ounces; 0.5 L

• Weight: 16 lbs; 7.3 kg

• Inlet Ports:(2) 1/2" BSP

• Discharge Ports: (2) 3/8" BSP

• Shaft Rotation: Top of Pulley Towards Manifold

• Shaft Mounting: Left


Component Materials:

• Forged brass manifold

• Solid ceramic oxide plungers

• High grade stainless steel valves

• Nitrile with fabric reinforcement seals

• Aluminum die-cast gear end
