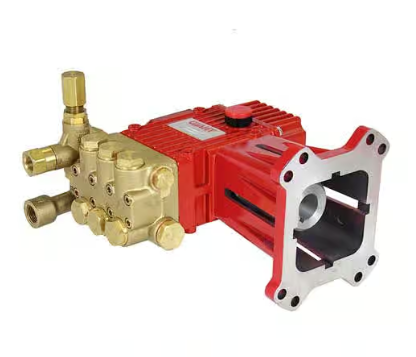

Giant Pumps P314 Pump With Right Shaft And Unloader- 3.8 GPM, 3500/4000 PSI Part Number P314RG2EU

Triplex Ceramic P314 Car Wash Pump

The Giant Pumps P314 is an American-made positive displacement pump for direct or belt driven applications. This triplex plunger high pressure pump has reciprocating plungers and an aluminum crankcase with sight glass and a vented dipstick. Choose quality Giant products for your car wash, pressure washing, and other high pressure applications.

Specifications:

• 3450 RPM

• Max Flow: 3.8 GPM; 14.4 L/min

• Nominal Pressure: 3500 PSI; 240 bar

• Power Required (Nominal): 9.2 hp; 6.9 kW

• Intermittent Pressure: 4000 PSI; 275 bar

• Power Required (Intermittent): 10.5 hp; 7.8 kW

• Max Temperature: 160 °F; 70°C

• Plunger Diameter: 0.47"; 12mm

• Stroke: 0.56"; 14.1 mm

• Inlet Pressure     145 PSI; 10 bar

• Crankshaft Diameter: 0.94"; 24 mm

• Oil Capacity (short): 14.2 fluid ounces; 0.42 L

• Oil Capacity (extended): 17.0 fluid ounces; 0.5 L

• Weight: 16 lbs; 7.3 kg

• Inlet Ports:(2) 1/2" BSP

• Discharge Ports: (2) 3/8" BSP

• Shaft Rotation: Top of Pulley Towards Manifold

• Shaft Mounting: Right
• Includes unloader


Component Materials:

• Forged brass manifold

• Solid ceramic oxide plungers

• High grade stainless steel valves

• Nitrile with fabric reinforcing seals

• Aluminum die-cast gear end
