Giant Pump

Giant Pumps Plunger Pump W/ Gear Box - Right Shaft, 3.5 GPM, 3045 PSI Part Number P317RB1

Giant Pumps Plunger Pump W/ Gear Box - Right Shaft, 3.5 GPM, 3045 PSI Part Number P317RB1

Regular price $678.01
Regular price $1,360.02 Sale price $678.01
Sale Sold out

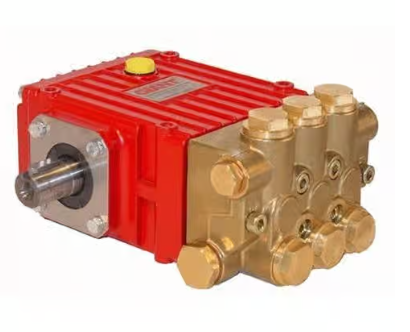

3.5 GPM Plunger Pump with Gearbox -Right Shaft

The Giant Pumps P317RB1 is an American-made positive displacement pump for direct or belt driven applications. This triplex plunger high pressure pump has reciprocating plungers and an aluminum crankcase with sight glass and a vented dipstick. This model is mounted on the right side and includes a gear box. Choose quality Giant products for your car washing systems, pressure washing business, and other high pressure applications.

Specifications:
  • 1750 RPM
  • Max Flow: 3.5 GPM; 13.2 L/min
  • Nominal Pressure: 3045 PSI; 210 bar
  • Power Consumption (Nominal): 7.4 bhp; 5.5 kW
  • Intermittent Pressure: 3350 PSI; 230 bar
  • Power Consumption (Intermittent): 8.1 bhp; 6.0 kW
  • Max Temperature: 160 Degrees F; 70 Degrees C
  • Plunger Diameter: 0.71"; 18mm
  • Stroke: 0.42"; 10.6 mm
  • Inlet Pressure: 145 PSI; 10 bar
  • Crankshaft Diameter: 0.94"; 24 mm
  • Oil Capacity (short): 14.2 fluid ounces; 0.42 L
  • Oil Capacity (extended): 17.0 fluid ounces; 0.5 L
  • Weight: 16 lbs.; 7.3 kg
  • Inlet Ports:(2) 1/2" BSP
  • Discharge Ports: (2) 3/8" BSP
  • Shaft Rotation: Top of Pulley Towards Manifold
  • Shaft Mounting: Right
Component Materials:
  • Forged brass manifold
  • Solid ceramic oxide plungers
  • High grade stainless steel valves
  • Nitrile with fabric reinforcement seals
  • Aluminum die-cast gear end
