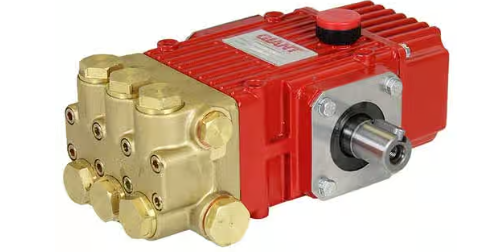

Giant Pumps Positive Displacement Triplex Plunger Pump -2000 PSI, 1.5 GPM, 3450 RPM, Right Shaft Part Number P206R

Direct Drive Pump

This plunger pump has reciprocating plungers enabling direct or belt drive application. Sight glass built into the aluminum crankcase allowing for accurate reading of oil levels. Manifold is constructed with forged brass. Features a ground and polished crankshaft with bronze connecting rods.

Specifications:

• RPM: 3450

• Flow: 1.5 GPM

• Pressure (Continuous): 2000 PSI

• Pressure (Intermittent): 2000 PSI

• Maximum Inlet Pressure: 145 PSI

• Maximum Temperature: 160 °F

• Plunger Diameter: 12 mm

• Stroke: .5 mm

• Crankshaft Diameter: 0.98"

• Crankshaft Rotation: Top of Pulley Towards Manifold

• Key Width: 0.31_

• Crankshaft Mounting: Either Side

• Inlet Ports: (2) 1/2_ BSP

• Discharge Ports: (2) 3/8_ BSP

• Crankcase Oil Capacity: 7.5 fl. oz.

• Extended Crankcase Oil Capacity: 9.0 fl. oz.

• Weight: 11.7 lbs.

• Volumetric Efficiency @ 1750 RPM: 0.94_

• Volumetric Efficiency @ 3450 RPM: 0.87_

• Volumetric Efficiency @ 1750 RPM: 0.86_


Key Component Material:

• Manifold: Special Brass

• Plungers: Solid Ceramic Oxide

• Valves: High Grade Stainless Steel

• Seals: Nitrile with Fabric Reinforcing

• Gear End: Aluminum
