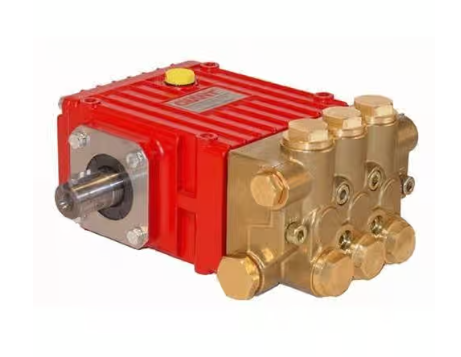

Giant Pumps Triplex Plunger Pump - 1450 RPM, 2000 PSI, 4.8 GPM Part Number P318L

Positive Displacement Pump

Designed with reciprocating plungers for use with direct and belt drive applications. Crankcase is made with aluminum and includes sight glass for viewing oil levels. Features solid ceramic plungers, nitrile seals, stainless steel valves and forged brass manifold. Pump is American-made.

Specifications:

• RPM: 1450

• Max Flow: 4.8 GPM

• Nominal Pressure: 2000 PSI

• Power Required (Nominal): 6.6 hp


Common Specifications:

• Inlet Pressure: 145 PSI

• Maximum Temperature: 160 °F

• Plunger Diameter: 0.79_

• Stroke: 0.56"

• Crankshaft Diameter: 24 mm

• Shaft Rotation: Top of Pulley Towards Manifold

• Shaft Mounting: Left Side

• Inlet Ports: (2) 1/2_ BSP

• Discharge Ports: (2) 3/8_ BSP

• Crankcase Oil Capacity (short): 14.2 fl. oz.

• Crankcase Oil Capacity (extended): 17.0 fl. oz.

• Weight: 16 lbs.


Key Component Material:

• Manifold: Forged Brass

• Plungers: Solid Ceramic Oxide

• Valves: High Grade Stainless Steel

• Seals: Nitrile With Fabric Reinforcing

• Gear End: Aluminum Die-Cast
