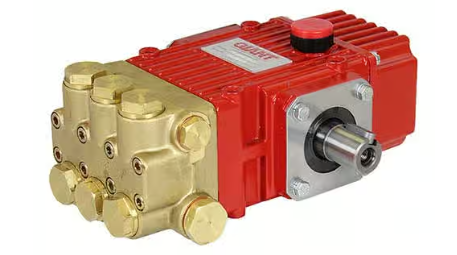

Giant Pumps Triplex Plunger Pump - 1750 RPM, 3500 PSI, 3.7 GPM Part Number P340R

Positive Displacement Pump

Designed with reciprocating plungers for use with direct and belt drive applications. Crankcase is made with aluminum and includes sight glass for viewing oil levels. Features solid ceramic plungers, nitrile seals, stainless steel valves and forged brass manifold. Pump is American-made.

Specifications:


• RPM: 1750

• Max Flow: 3.7 GPM

• Nominal Pressure: 3500 PSI

• Power Consumption (Nominal): 8.9 HP

• Intermittent Pressure: 4060 PSI

• Power Consumption (Intermittent): 10.4 HP

• Maximum Inlet Pressure: 145 PSI

• Maximum Temperature: 160 °F

• Plunger Diameter: 0.63_ 16

• Stroke: 0.56"

• Crankshaft Diameter: 24 mm

• Crankshaft Rotation: Top of Pulley Towards Manifold

• Crankshaft Mounting: Either Side

• Inlet Ports: (2) 1/2_ BSP

• Discharge Ports: (2) 3/8_ BSP

• Crankcase Oil Capacity (short): 14.2 fl. oz.

• Crankcase Oil Capacity (extended): 17.0 fl. oz.

• Weight: 16 lbs.


Key Component Material:


• Manifold: Forged Brass

• Plungers: Solid Ceramic Oxide

• Valves: High Grade Stainless Steel

• Seals: Nitrile with Fabric Reinforcing

• Gear End: Aluminum Die-Cast
