Giant Pump

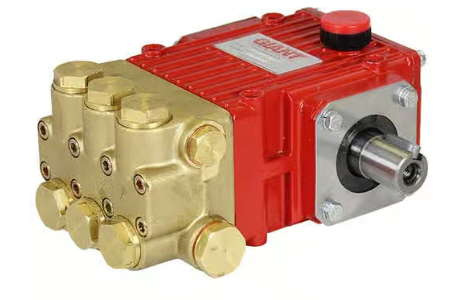

Giant Pumps Triplex Plunger Pump - 3.5 GPM, 3045 PSI, 1750 RPM, Right Shaft, Short Backend Part Number P317RX

Giant Pumps Triplex Plunger Pump - 3.5 GPM, 3045 PSI, 1750 RPM, Right Shaft, Short Backend Part Number P317RX

$408.48
$820.96 $408.48
Sale Sold out

3.5 GPM - Right Shaft Pump

Giant Pumps P317RX  high-pressure pump has a right-side mounted shaft measuring 24mm. It features a short backend. Equipped with 18mm ceramic oxide plungers. This pump generates a flow rate of 3.5 GPM and sustains a maximum pressure of 3045 PSI. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.

Specifications:
  • Flow: 3.5 GPM
  • Maximum Discharge Pressure: 3045 PSI
  • Crankshaft Speed: 1750 RPM
  • Power: 7.4 HP
  • Crankshaft Speed (High): 3.5 RPM
  • Intermittent Flow: 3.5 GPM
  • Intermittent Discharge Pressure: 3350 PSI
  • Intermittent Crankshaft Speed: 1750 RPM
  • Intermittent Power Consumption: 8.1 HP
  • Max Temperature: 160 °F
  • Inlet Port Size: (2) 1/2" BSP
  • Discharge Port Size: (2) 3/8" BSP
  • Plunger Diameter: 0.71 in. (18 mm)
  • Stroke    0.42 in. (10.6 mm)
  • Maximum Inlet Pressure: 145 PSI
  • Crankshaft Diameter: 24 mm
  • Crankshaft Rotation: Top of Pulley Towards Manifold
  • Crankshaft Mounting: Either Side
  • Crankcase Oil Capacity: 14.2 fl. oz.
  • Weight:16 lbs.
Key Component Materials:
  • Manifold Material: Forged Brass
  • Crankcase Material: Aluminum Die Cast
  • Plunger Material: Solid Ceramic Oxide
  • Valve Material: High Grade Stainless Steel
  • Seal Material: Nitrile with Fabric Reinforcing
View full details
