Giant Pump

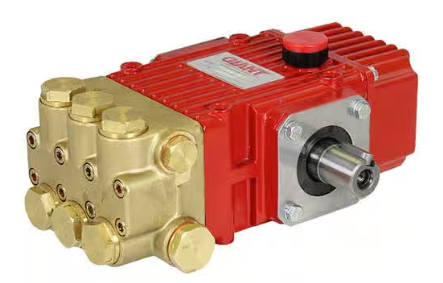

Giant Pumps Triplex Plunger Pump - 3.8 GPM, 2000 PSI, 3450 RPM, 5.2 HP Part Number P211R

Giant Pumps Triplex Plunger Pump - 3.8 GPM, 2000 PSI, 3450 RPM, 5.2 HP Part Number P211R

Regular price $388.69
Regular price $781.38 Sale price $388.69
Sale Sold out

3.8 GPM Positive Displacement Pump

Giant Pumps triplex plunger pump P211R is made for direct or belt drive applications. It features a forged brass manifold with stainless steel valves to provide corrosion resistance. Engineered to endure a maximum pressure of 2000 PSI and delivers a flow rate of 3.8 GPM. Shaft handles a maximum speed of 3450 RPM.

Specifications:
  • Flow: 3.8 GPM
  • Maximum Discharge Pressure: 2000 PSI
  • Crankshaft Speed: 3450 RPM
  • Power: 5.2 HP
  • Intermittent Flow: 2.1 GPM
  • Intermittent Discharge Pressure: 2500 PSI
  • Intermittent Crankshaft Speed: 1750 RPM
  • Intermittent Power Consumption: 3.6 HP
  • Max Temperature: 160 °F
  • Inlet Port Size: (2) 1/2" BSP
  • Discharge Port Size: (2) 3/8" BSP
  • Plunger Diameter: 0.47 in. (12 mm)
  • Stroke:    0.56 in. (14.2 mm)
  • Maximum Inlet Pressure: 145 PSI
  • Crankshaft Diameter: 0.98 in. (24 mm)
  • Crankshaft Rotation: Top of Pulley Towards Manifold
  • Key Width: 0.31 in. (8 mm)
  • Crankshaft Mounting: Either Side
  • Crankcase Oil Capacity US: 7.5 fl. oz.
  • Extended Crankcase Oil Capacity: m9.0 fl. oz.
  • Weight: 11.7 lbs.
  • Volumetric Efficiency: 0.87
  • Mechanical Efficiency: 0.86
  • Manifold Material: Special Brass
  • Crankcase Material: Aluminum
  • Plunger Material: Solid Ceramic Oxide
  • Valve Material: High Grade Stainless Steel
  • Seal Material: Nitrile with Fabric Reinforcing
