Giant Pump

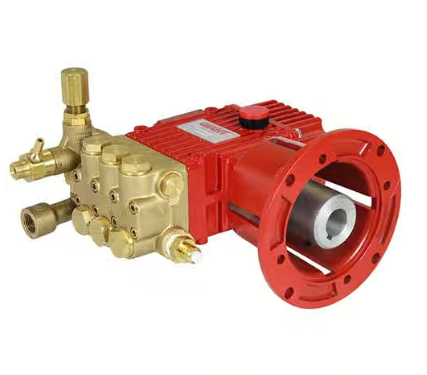

Giant Pumps Triplex Plunger Pump - 3.8 GPM, 3200 PSI, 3450 RPM, Right Shaft, 1 Inch Gas Engine Flange, Unloader, 2.1mm Fixed Injector, Thermal Relief Valve Part Number P321RG1EU3T

Giant Pumps Triplex Plunger Pump - 3.8 GPM, 3200 PSI, 3450 RPM, Right Shaft, 1 Inch Gas Engine Flange, Unloader, 2.1mm Fixed Injector, Thermal Relief Valve Part Number P321RG1EU3T

$503.41
$1,010.82 $503.41
Sale Sold out

3.8 GPM - Right Shaft Pump

Giant Pumps P321RG1EU3T high-pressure pump has a right-side mounted shaft that is flanged with a 1 inch coupler for gas engines. It includes an unloader, 2.1mm fixed injector, and a thermal relief valve. Features 12 mm ceramic oxide plungers. This pump generates a flow rate of 3.8 GPM and sustains a maximum pressure of 3200 PSI. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.

Specifications:
  • Flow: 3.8 GPM
  • Maximum Discharge Pressure: 3200 PSI
  • Crankshaft Speed: 3450 RPM
  • Power: 8.4 HP
  • Intermittent Flow: 3.8 GPM
  • Intermittent Discharge Pressure: 3500 PSI
  • Intermittent Crankshaft Speed: 3450 RPM
  • Intermittent Power Consumption: 10.6 HP
  • Max Temperature: 160 °F
  • Inlet Port Size: (2) 1/2" BSP
  • Discharge Port Size: (2) 3/8" BSP
  • Plunger Diameter: 0.47 in. (12 mm)
  • Stroke: 0.56 in. (14.1 mm)
  • Maximum Inlet Pressure: 145 PSI
  • Crankshaft Diameter: 0.94 in. (24 mm)
  • Crankshaft Rotation: Top of Pulley Towards Manifold
  • Crankshaft Mounting: Either Side
  • Crankcase Oil Capacity US: 14.2 fl. oz.
  • Crankcase Oil Capacity (Vertical): 17.0 fl. oz.
  • Weight:    25 lbs.
Includes:
  • Gas Engine Flange (3-5/8"dia. Bolts)
  • 1" Diameter Aluminum Coupler
  • Unloader
  • 2.1mm Fixed Injector
  • Thermal Relief Valve
Key Component Materials:
  • Manifold Material: Forged Brass
  • Crankcase Material: Aluminum Die Cast
  • Plunger Material: Solid Ceramic Oxide
  • Valve Material: High Grade Stainless Steel
  • Seal Material: Nitrile with Fabric Reinforcing
