Giant Pump

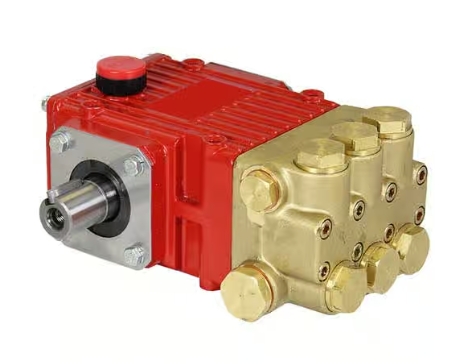

Giant Pumps Triplex Plunger Pump - 4.2 GPM, 2000 PSI, 1750 RPM, Left Shaft, Short Backend Part Number P219LX

Giant Pumps Triplex Plunger Pump - 4.2 GPM, 2000 PSI, 1750 RPM, Left Shaft, Short Backend Part Number P219LX

$388.69
$781.38 $388.69
Sale Sold out

4 GPM - Left Shaft Pump

Giant Pumps P219LX high-pressure pump has a left-side mounted shaft measuring 24mm. It features a short backend. Equipped with 18mm ceramic oxide plungers. This pump generates a flow rate of 4.2 GPM and sustains a maximum pressure of 2000 PSI. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.

Specifications:
  • Shaft Side: Left
  • Other Features: Short Backend
  • Flow: 4.2 GPM
  • Maximum Discharge Pressure: 2000 PSI
  • Crankshaft Speed: 1750 RPM
  • Power: 5.8 HP
  • Intermittent Flow: 4.2 GPM
  • Intermittent Discharge Pressure: 2500 PSI
  • Intermittent Crankshaft Speed: 1750 RPM
  • Intermittent Power Consumption: 7.2 HP
  • Max Temperature: 160 °F
  • Inlet Port Size: (2) 1/2" BSP
  • Discharge Port Size: (2) 3/8" BSP
  • Plunger Diameter: 0.71 in. (18 mm)
  • Stroke: 0.49 in. (12.4 mm)
  • Maximum Inlet Pressure: 145 PSI
  • Crankshaft Diameter: 0.98 in. (24 mm)
  • Crankshaft Rotation: Top of Pulley Towards Manifold
  • Key Width: 0.31 in. (8 mm)
  • Crankshaft Mounting: Either Side
  • Crankcase Oil Capacity US: 7.5 fl. oz.
  • Extended Crankcase Oil Capacity: 9.0 fl. oz.
  • Weight: 27 lbs.
  • Volumetric Efficiency: 0.87
  • Mechanical Efficiency: 0.86
Key Component Materials:
  • Manifold Material: Special Brass
  • Crankcase Material: Aluminum
  • Plunger Material: Solid Ceramic Oxide
  • Valve Material: High Grade Stainless Steel
  • Seal Material: Nitrile with Fabric Reinforcing
