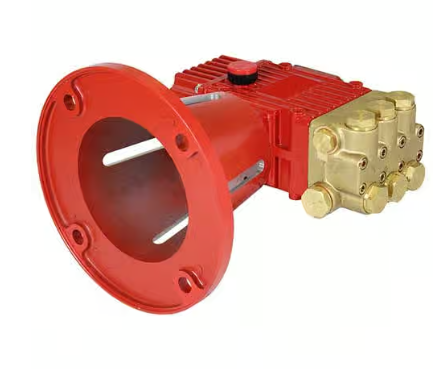

Giant Pumps Triplex Plunger Pump, 4.7 GPM, 3045 PSI, Left Shaft, 184 TC Flange Part Number P316LE2

Left Mounted Plunger Pump

This Giant P316LE2 plunger pump has a left-side mounted shaft and a 184 TC electric motor flange featuring 7.25" bolts. This high-quality positive displacement plunger pump has a maximum flow rate of 4.7 GPM at 1750 RPM. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.

Specifications:

@1450 RPM

• Flow: 4.0 GPM
• Nominal Pressure: 3045 PSI
• Power Required (Nominal): 8.4 HP
• Intermittent Power: 3350 PSI
• Power Required (Intermittent): 9.2 HP

@1750 RPM

• Flow: 4.7 GPM
• Nominal Pressure: 2500 PSI
• Power Required (Nominal): 8.1 HP
• Intermittent Power: 2750 PSI
• Power Required (Intermittent): 8.9 HP

Common

• Maximum Inlet Pressure: 145 PSI
• Maximum Temperature: 160 °F
• Plunger Diameter: 18 mm
• Stroke: 14.1 mm
• Crankshaft Diameter: 24 mm
• Crankshaft Rotation: Top of pulley towards manifold
• Crankshaft Mounting: Left
• Inlet Ports: (2) 1/2" BSP
• Discharge Ports: (2) 3/8" BSP
• Crankcase Oil Capacity: 14.2 fluid ounces
• Extended Crankcase Oil Capacity: 17.0 fluid ounces
• Weight: 16 lbs.

Key Component Material:

• Manifold: Special brass
• Plungers: Solid ceramic oxide
• Valves: High grade stainless steel
• Seals: Nitrile with fabric reinforcing
• Gear End: Aluminum
