Giant Pump

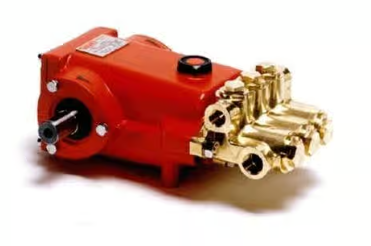

Giant Pumps Triplex Plunger Pump - 4.9 GPM, 2320 PSI, 1420 RPM, 7.8 HP Part Number P55W

Giant Pumps Triplex Plunger Pump - 4.9 GPM, 2320 PSI, 1420 RPM, 7.8 HP Part Number P55W

$760.82
$1,525.64 $760.82
Sale Sold out

4.9 GPM - Reciprocating Plunger Pump

Giant Pumps P55W is a German made pump with a 24mm shaft that is designed to allow for a motor to be attached to either side. Features 18mm ceramic oxide plungers. This pump generates a flow rate of 4.9 GPM and sustains a maximum pressure of 2320 PSI. Giant positive displacement pumps are reliable options for water systems at car washes.

Specifications:
  • Flow: 4.9 GPM
  • Maximum Discharge Pressure: 2320 PSI
  • Crankshaft Speed: 1420 RPM
  • Power: 7.8 HP
  • Intermittent Flow: 6.0 GPM
  • Intermittent Discharge Pressure: 1000 PSI
  • Intermittent Crankshaft Speed: 1750 RPM
  • Intermittent Power Consumption: 4.1 HP
  • Max Temperature: 160 °F
  • Inlet Port Size: (2) 1/2" NPT
  • Discharge Port Size: (2) 3/8" NPT
  • Plunger Diameter: 0.71 in. (18 mm)
  • Stroke: 0.713 in. (18.1 mm)
  • Maximum Inlet Pressure: 145 PSI
  • Crankshaft Diameter: 24 mm
  • Crankshaft Rotation: Top of Pulley Towards Manifold
  • Crankshaft Mounting: Either Side
  • Crankcase Oil Capacity: 12.5 fl. oz.
  • Weight: 17.2 lbs.
  • Volumetric Efficiency: 0.94
  • NPSHR: 18.0 Ft.-head
Key Component Materials:
  • Manifold Material: Forged Brass
  • Crankcase Material: Aluminum
  • Plunger Material: Solid Ceramic Oxide
  • Valve Material: High Grade Stainless Steel
  • Seal Material: Nitrile with Fabric Reinforcing
