Giant Pump

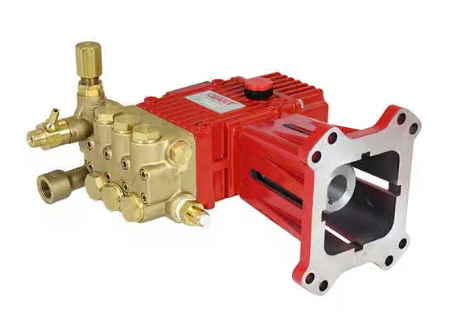

Giant Pumps Triplex Plunger Pump - 4 GPM, 3045 PSI, 1450 RPM, Right Shaft, 1 Inch Gas Engine Flange, Unloader, Thermal Relief Valve

Giant Pumps Triplex Plunger Pump - 4 GPM, 3045 PSI, 1450 RPM, Right Shaft, 1 Inch Gas Engine Flange, Unloader, Thermal Relief Valve

$526.35
$1,056.70 $526.35
Sale Sold out

4 GPM - Right Shaft Pump

Giant Pumps P316RG2EUT high-pressure pump has a right-side mounted shaft that is flanged with a 1 inch coupler for gas engines. It includes an unloader, and a thermal relief valve. Features 18mm ceramic oxide plungers. This pump generates a flow rate of 3.8 GPM and sustains a maximum pressure of 3045 PSI. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.

Specifications:
  • Flow: 4 GPM
  • Maximum Discharge Pressure: 3045 PSI
  • Crankshaft Speed: 1450 RPM
  • Power: 8.4 HP
  • Flow (High Speed): 4.7 GPM
  • Maximum Discharge Pressure (High Speed): 2500 PSI
  • Power Consumption (High Speed): 8.1 HP
  • Crankshaft Speed (High): 1750 RPM
  • Intermittent Flow: 4 GPM
  • Intermittent Discharge Pressure: 3350 PSI
  • Intermittent Crankshaft Speed: 1450 RPM
  • Intermittent Power Consumption: 9.2 HP
  • Max Temperature: 160 °F
  • Inlet Port Size: (2) 1/2" BSP
  • Discharge Port Size: (2) 3/8" BSP
  • Plunger Diameter: 0.71 in. (18 mm)
  • Stroke: 0.56" (14.1 mm)
  • Maximum Inlet Pressure: 145 PSI
  • Crankshaft Diameter: 24 mm
  • Crankshaft Rotation: Top of Pulley Towards Manifold
  • Crankshaft Mounting: Either Side
  • Crankcase Oil Capacity US: 14.2 fl. oz.
  • Extended Crankcase Oil Capacity: 17.0 fl. oz.
  • Weight: 24 lbs.
  • NPSHR: 19 Ft.-head
Includes:
  • Gas Engine Flange (6.5"dia. Bolts)
  • 1" Diameter Aluminum Coupler
  • Unloader
  • Thermal Relief Valve
Key Component Materials:
  • Manifold Material: Forged Brass
  • Crankcase Material: Aluminum Die Cast
  • Plunger Material: Solid Ceramic Oxide
  • Valve Material: High Grade Stainless Steel
  • Seal Material: Nitrile with Fabric Reinforcing
