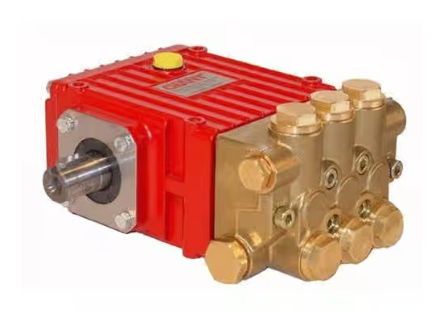

Giant Pumps Triplex Plunger Pump - 5.8 GPM, 1750 PSI, Right Shaft Part Number P318R

High Pressure Car Wash Plunger Pump

The Giant Pumps P318R is an American-made positive displacement pump for direct or belt driven applications. This triplex plunger high pressure pump has reciprocating plungers and an aluminum crankcase with sight glass and a vented dipstick. Choose quality Giant products for your car washing systems, pressure washing business, and other high pressure applications.

1450 RPM Specifications:

• Max Flow: 4.8 GPM
• Nominal Pressure: 2000 PSI
• Power Consumption (Nominal): 6.6 hp

1750 RPM Specifications:

• Max Flow: 5.8 GPM
• Nominal Pressure: 1000 PSI
• Power Consumption (Nominal): 4.0 hp

Common Specifications:

• Max Temperature: 160°F
• Plunger Diameter: 18mm
• Stroke: 14.1 mm
• Inlet Pressure: 145 PSI
• Crankshaft Diameter: 24 mm
• Oil Capacity (short): 14.2 fluid ounces
• Oil Capacity (extended): 17.0 fluid ounces
• Weight: 16 lbs
• Inlet Ports:(2) 1/2" BSP
• Discharge Ports: (2) 3/8" BSP
• Shaft Rotation: Top of Pulley Towards Manifold
• Shaft Mounting: Right

Component Materials:

• Forged brass manifold
• Solid ceramic oxide plungers
• High grade stainless steel valves
• Nitrile seals with fabric reinforcement
• Aluminum die-cast gear end
