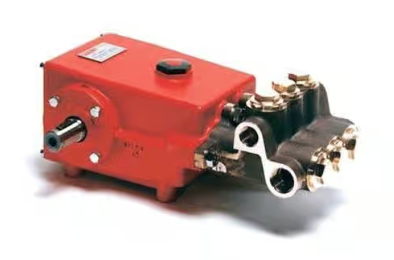

Giant Pumps Triplex Plunger Pump - 8.9 GPM, 3625 PSI, 1450 RPM, 22.3 HP Part Number MP4120
Giant Pumps Triplex Plunger Pump - 8.9 GPM, 3625 PSI, 1450 RPM, 22.3 HP Part Number MP4120
Regular price
$4,742.58
Regular price
$9,489.16
Sale price
$4,742.58
Unit price
/
per
8.9 GPM - Reciprocating Plunger Pump
Giant Pumps MP4120 is a German made pump with a 28mm shaft that is designed to allow for a motor to be attached to either side. Features 20mm ceramic oxide plungers. This pump generates a flow rate of 8.9 GPM and sustains a maximum pressure of 3625 PSI. Giant positive displacement pumps are reliable options for water systems at car washes.Specifications:
- Flow: 8.9 GPM
- Maximum Discharge Pressure: 3625 PSI
- Crankshaft Speed: 1450 RPM
- Power: 22.3 HP
- Max Temperature: 160 °F
- Inlet Port Size: (2) 1" NPT
- Discharge Port Size: (2) 3/4" NPT
- Plunger Diameter: 0.79 in. (20 mm)
- Stroke: 1.02 in. (26 mm)
- Maximum Inlet Pressure: 145 PSI
- Crankshaft Diameter: 1.1 in. (28 mm)
- Crankshaft Rotation: Top of Pulley Towards Manifold
- Crankshaft Mounting: Either Side
- Crankcase Oil Capacity: 33.8 fl. oz.
- Weight: 66 lbs.
- NPSHR: 7.5 mWs
- Manifold Material: Aluminum Bronze
- Crankcase Material: Spheroidal Cast Iron
- Plunger Material: Solid Ceramic Oxide
- Valve Material: High Grade Stainless Steel
- Seal Material: Nitrile with Fabric Reinforcing
