Giant Pump

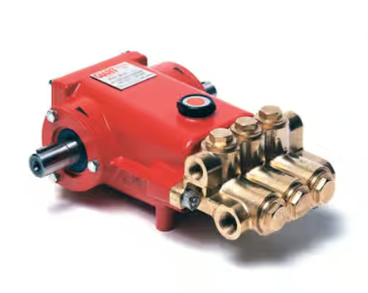

Giant Pumps Triplex Plunger Pump, Weep Return - 3190 PSI, 6.7 GPM, 1420 RPM Part Number SP351W

Giant Pumps Triplex Plunger Pump, Weep Return - 3190 PSI, 6.7 GPM, 1420 RPM Part Number SP351W

Regular price $1,532.25
Regular price $3,068.50 Sale price $1,532.25
Sale Sold out

Belt Driven Plunger Pump

The Giant Pumps SP351W is a German-made triplex plunger that is designed with a weep return for weep spray gun systems. Positive displacement plungers make the pump ideal for belt drive applications. The pulley can be attached to either side of the pump. Crankshaft rotates from the top moving towards the manifold and handles a maximum speed of 1420 RPM. The manifold is constructed with brass for strength and corrosion resistance. Pump handles a maximum pressure of 3190 PSI and a flow rate of 6.7 GPM.


Specifications:
  • Flow: 6.7 GPM
  • Maximum Discharge Pressure: 3190 PSI
  • Crankshaft Speed: 1420 RPM
  • Power: 14.7 HP
  • Max Temperature: 160 °F
  • Inlet Port Size: (2) 3/4" NPT
  • Discharge Port Size: (2) 3/8" NPT
  • Plunger Diameter: 0.79 in.
  • Stroke: 0.79 in.
  • Crankshaft Rotation: Top of Pulley Towards Manifold
  • Crankshaft Mounting: Either Side
  • Crankcase Oil Capacity: 23.7 fl. oz.
  • Weight: 41.9 lbs.
Materials:
  • Manifold: Brass
  • Crankcase: Aluminum
  • Plunger: Solid Ceramic Oxide
  • Valve: High Grade Stainless Steel
  • Seal: Nitrile with Fabric Reinforcing
