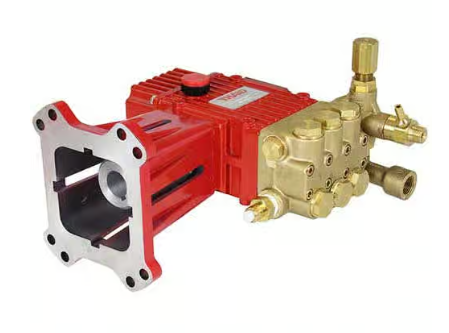

Giant Pumps Triplex Plunger Pump With Flange, Coupler, And Unloader - 4.8 GPM, 2500 PSI, 3450 RPM Part Number P319LG2EUT

Aluminum Crankcase Plunger Pump with Gas Flange, Coupler, and Unloader

The Giant Pumps P319LG2EUT is an American-made positive displacement pump for direct or belt driven applications. This triplex plunger high pressure pump has reciprocating plungers and an aluminum crankcase with a sight glass and a vented dipstick. This P319 model is mounted on the left side and includes a flange for gas motors over 9 horsepower and a 1" aluminum coupler. It comes with an unloader and a thermal pop-off device.

Choose quality Giant products for your car washing systems, pressure washing business, and other high pressure applications.

Specifications:

• 3450 RPM
• Max Flow: 4.8 GPM; 18.2 L/min
• Nominal Pressure: 2500 PSI; 170 bar
• Power Consumption (Nominal): 8.3 hp; 6.2 kW
• Intermittent Pressure: 2750 PSI; 190 bar
• Power Consumption (Intermittent): 9.1 bhp; 6.8 kW
• Max Temperature: 160 °F; 70°C
• Plunger Diameter: 0.71"; 18mm
• Stroke: 0.31"; 8.0 mm
• Max Inlet Pressure: 145 PSI; 10 bar
• Crankshaft Diameter: 0.94"; 24 mm
• Oil Capacity (short): 14.2 fluid ounces; 0.42 L
• Oil Capacity (extended): 17.0 fluid ounces; 0.5 L
• Weight: 16 lbs; 7.3 kg
• Inlet Ports:(2) 1/2" BSP
• Discharge Ports: (2) 3/8" BSP
• Crankshaft Rotation: Top of Pulley Towards Manifold
• Shaft Mounting: Left
• Gas flange over 9 HP
• 1" aluminum coupler
• Made in the U.S.A.

Component Materials:

• Forged brass manifold

• Solid ceramic oxide plungers

• High grade stainless steel valves

• Nitrile with fabric reinforcement seals

• Aluminum die-cast gear end
