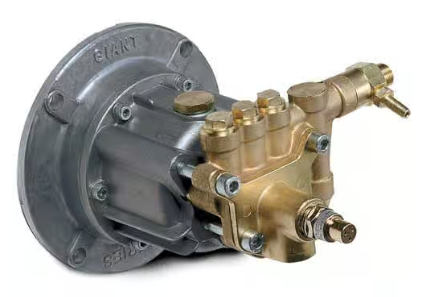

Giant Pumps Vertical Direct Drive Only Triplex Plunger Pump - 2400 PSI, 2.4 GPM, 3450 RPM Part Number GXRV2424-112

Axial Positive Displacement Pump

Giant Pumps' GXR Series pumps are made in America. This pump has the ability to be powered by a gas engine or an electric motor and is mounted vertical. Integrated with the pump is a thermal relief valve. Valves are made using Delrin.

Specifications:

• Flow: 2.4 GPM

• Maximum Discharge Pressure: 2400 PSI

• Crankshaft Speed: 3450 RPM

• Power: 5.2 HP

• Power Consumption (High Speed): 0.0 KW

• Intermittent Power Consumption: 0.0 HP

• Max Temperature: 80 °F

• Inlet Port Size: 1/2" NPT

• Discharge Port Size: 3/8" NPT

• Plunger Diameter: 0.63 in.

• Stroke: 0.63 in.

• Maximum Inlet Pressure: 90 PSI

• Key Width (Vertical): 3/4" x 3/16"

• Crankcase Oil Capacity: 4.1 fl. oz.

• Weight: 9 lbs.

Key Component: Material

• Manifold: Brass

• Plungers: Stainless Steel

• Valves: Delrin

• Seals: Nitrile With Fabric Reinforcing

• Includes the Following Accessories:

• Injector With 2.1 mm Orifice

• 1/2" Thermal Relief Valve

• 7/8" Wobble Plate Bore
