Giant Triplex Plunger Displacement Pump For TC Face Electric Motor - 4.8 GPM, 2200 PSI, 1450 RPM Part Number P324RE2F

Triplex Plunger Pump with Electric Motor Coupling

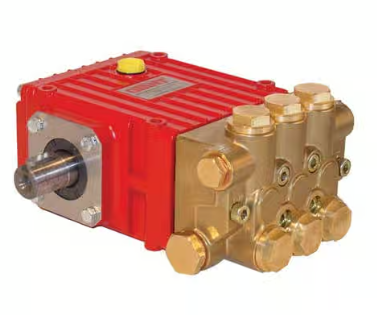

The Giant P324RE2F pump is a triplex plunger displacement pump that includes a coupling for a TC face electric motor. This American made pump boasts an aluminum crankcase, a forged brass manifold, and solid ceramic plungers with stainless steel bases. Use in high-pressure water transfer applications like commercial car washes.

Specifications:

• Max Flow: 4.8 GPM (18.2 L/min)
• Nominal Pressure: 2200 PSI (150 bar)
• Power Required (Nominal): 7.3 hp (5.4 kW)
• Maximum Inlet Pressure: 145 PSI (10 bar)
• Maximum Temperature: 160 °F (70° C)
• Plunger Diameter: 0.79" (20 mm)
• Stroke: 0.56" (14.1 mm)
• Crankshaft Diameter: 24 mm
• Crankshaft Rotation: Top of Pulley Towards Manifold
• Inlet Ports: (2x) 1/2" BSP
• Discharge Ports: (2x) 3/8" BSP
• Crankcase Oil Capacity (short): 14.2 fluid oz. (0.42 L)
• Crankcase Oil Capacity (extended): 17.0 fluid oz. (0.5 L)
• Weight: 16 lbs. (7.3 kg)

Other Details:

• For use with a TC face electric motor - 7 1/4" diameter bolts
• 1 1/8" aluminum coupler
• Right mounted shaft
• Made in America

Key Component Materials:

• Manifold: Forged brass

• Plungers: Solid ceramic oxide

• Valves: High-grade stainless steel

• Seals: Nitrile with fabric reinforcing

• Gear End: Aluminum die-cast
