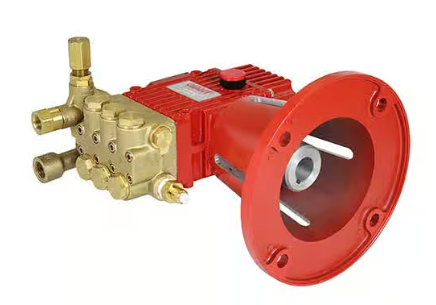

Giant Triplex Plunger Pump, 4.7 GPM, 2500 PSI, Flange Mount With Coupler, Unloader, Thermal Relief Part Number P220RE2HUT

2500 PSI Right Mounted Plunger Pump

The Giant P220RE2HUT high-pressure pump has a right-side mounted shaft and 18 mm ceramic plungers. This high-quality positive displacement plunger pump has a maximum flow rate of 4.7 GPM, a maximum pressure of 2500 PSI, and a 1750 RPM crankshaft speed. Features NEMA 56C flange for electric motor direct drive, 1 3/8" aluminum coupler, and unloader and thermal relief valve for pressure and temperature protection. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.

Specifications:

• Max GPM: 4.7 GPM
• Nominal/Intermittent pressure: 2000/2500 PSI
• Maximum temperature: 160° F
• Plunger diameter: 18 mm
• Stroke: 14.1 mm
• Crankshaft diameter: 24 mm
• Inlet ports: (2) 1/2" BSP
• Discharge ports: (2) 3/8" BSP
• Crankcase oil capacity: 7.5 fl. oz.
• Volumetric Efficiency @ 1750 RPM: 0.94
• Volumetric Efficiency @ 3450 RPM: 0.87
• Mechanical Efficiency @ 3450 RPM: 0.86
• Power required: 4.7/5.9 BHP

Key Component Material:

• Manifold: Special brass
• Plungers: Solid ceramic oxide
• Valves: High grade stainless steel
• Seals: Nitrile with fabric reinforcing
• Gear End: Aluminum
