Giant Triplex Plunger Pump 6.1 GPM, 1900 PSI Part Number P-56W

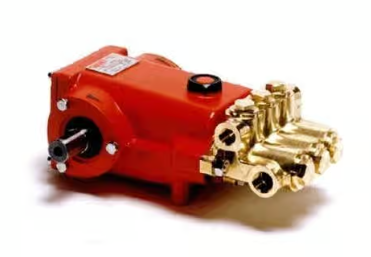

Giant Industries Triplex Plunger Pump

Rely on Giant Pumps for the best performance for your wash facility! Features an aluminum crankcase with sight glass and vented dipstick for durability and ease-of-use. A hardened and polish crankshaft and bronze connecting rods add to service life along with hardened stainless steel plunger bases. Also features solid ceramic plungers, nitrile seals with fabric reinforcing, stainless steel valves and forged brass manifold.

Size: (2) 1/2" BSP inlet, (2) 3/8" BSP outlet

Specifications:

• Ratings (Continuous) ................................ 6.1 GPM ( 23 lm) @ 1900 PSI (131 bar) @ 1420 RPM

• Ratings (Intermittent) .................................. 7.5 GPM (28 lm) @ 1000 PSI (69 bar) @ 1750 RPM

• Inlet Pressure .......................................................................................... Up to 145 PSI

• Plunger Diameter .................................................................................... 20mm

• Stroke ..................................................................................................... 18.1mm

• Crankcase Oil Capacity .......................................................................... 12.5 fl.oz.

• Temperature of Pumped Fluids ....................................................... Up to 160o F ( 71 o C)(P56W)

  • Up to 190o F ( 88 o C)(P56W-HK)

• Crankshaft Mounting .............................................................................. Either

• Shaft Rotation ............................................................................Top of Pulley Towards Fluid End

• Weight .................................................................................................... 18 lbs. (8.16 kg)

• Crankshaft Diameter ............................................................................... 24mm

• Volumetric Efficiency @ 1420 RPM ....................................................... 0.94

• Mechanical Efficiency @ 1420 RPM ...................................................... 0.86
