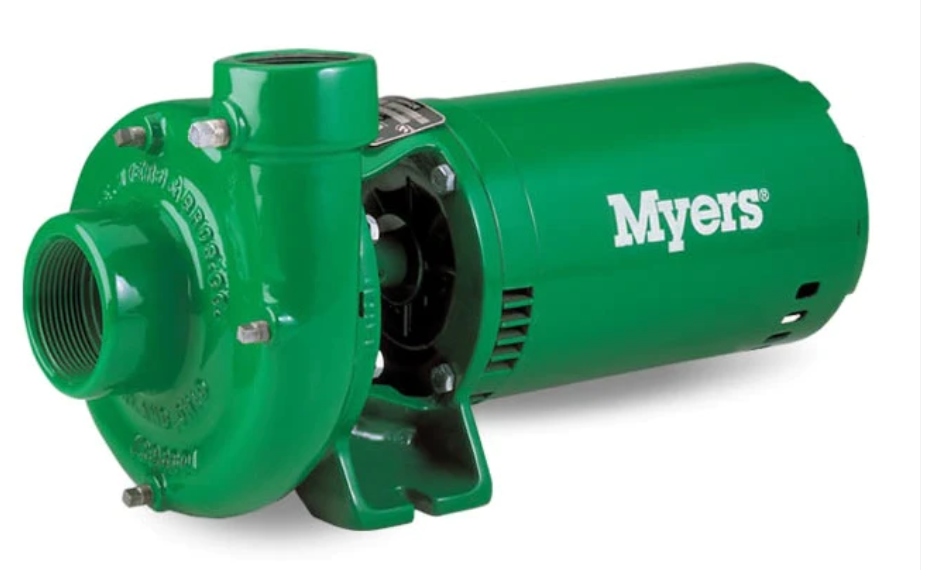

Myers Centri-Thrift Centrifugal Pump Part Number 200M-5-3

Myers Centri-Thrift continuous service pumps are rugged and reliable. Over the years, these pumps have earned a reputation for dependable and efficient performance in demanding continuous service applications. The Centri-Thrift line is available in 1-1/4", 1-1/2" and 2" discharge sizes. Horsepower requirements range from 2 HP to 7-1/2 HP. Capacities range to 240 gpm and heads to 140 feet. The pumps are only available as standard fitted and can be either close-coupled or belt driven. For added versatility, the volute on the 125M, 150M and 200M series can be rotated to eight positions at 45 degree intervals. These adjustments allow for ease of installation and servicing without disturbing the system's piping. Applications: Booster Service, Air Conditioning, Cooling Towers, Refrigeration, Cold & Hot Water Circulation, Liquid Transfer, Sprinkling, Laundry Equipment, Irrigation, Building Service, Spraying Equipment, General Industrial Service

• Max flow: 130 gpm
• Max pressure: 60 psi
• Suction/Discharge: 2-1/2" FNPT, 2" FNPT
• High Head Capability: Up to 240 Feet
• Impeller: Brass, 5-1/8" Diameter
• Max Lift: 25'
• Motor: 5 HP Three Phase (230/460V), Standard NEMA C Face, 60Hz/3600RPM
• Weight: 157 lbs
