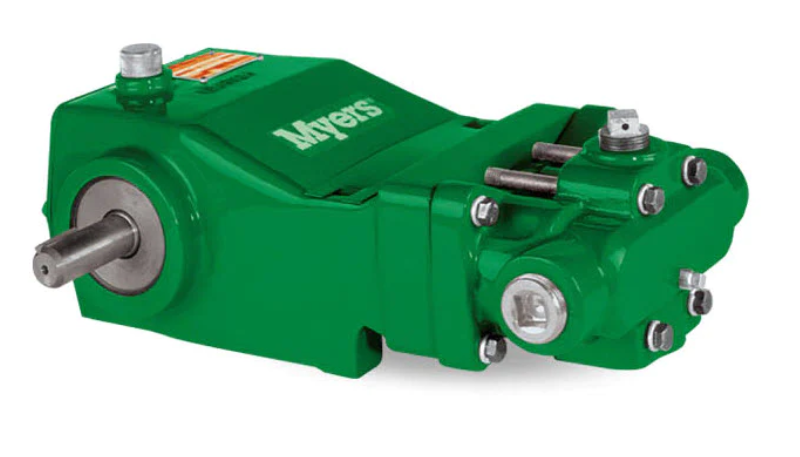

Myers High Pressure Reciprocating Piston Pump Part Number CX20-10AV

Myers High Pressure Reciprocating Piston Pump Part Number CX20-10AV

Regular price $7,480.00
Regular price $12,800.00 Sale price $7,480.00
Sale Sold out

Rugged design for continuous operation. Three suction ports for installation versatility. Smooth solid ceramic cylinder liners allow continuous operation at maximum pressure and flow. Large concentric suction and discharge valves allow complete filling of cylinders. Solid cast iron power end with constant lubrication of all working parts. Fluid end available in high-strength cast iron, aluminum-bronze, or 316 stainless steel.

  • Max flow: 20.8 gpm
  • Max pressure: 1000 psi
  • Max speed: 560 rpm
  • Port sizes: 1-1/2" NPT suction, 1" NPT discharge
  • Cylinder bore: 1-3/4"
  • Max HP: 14.4
  • Fluid end: Aluminum bronze
  • Maximum temperature rating: 180°F
  • Weight: 104 lbs
